New insights into the cold tolerance of upland switchgrass by integrating a haplotype-resolved genome and multi-omics analysis

Abstract

Background

Switchgrass (Panicum virgatum L.) is a bioenergy and forage crop. Upland switchgrass exhibits superior cold tolerance compared to the lowland ecotype, but the underlying molecular mechanisms remain unclear.

Results

Here, we present a high-quality haplotype-resolved genome of the upland ecotype “Jingji31.” We then conduct multi-omics analysis to explore the mechanism underlying its cold tolerance. By comparative transcriptome analysis of the upland and lowland ecotypes, we identify many genes with ecotype-specific differential expression, particularly members of the cold-responsive (COR) gene family, under cold stress. Notably, AFB1, ATL80, HOS10, and STRS2 gene families show opposite expression changes between the two ecotypes. Based on the haplotype-resolved genome of “Jingji31,” we detect more cold-induced allele-specific expression genes in the upland ecotype than in the lowland ecotype, and these genes are significantly enriched in the COR gene family. By genome-wide association study, we detect an association signal related to the overwintering rate, which overlaps with a selective sweep region containing a cytochrome P450 gene highly expressed under cold stress. Heterologous overexpression of this gene in rice alleviates leaf chlorosis and wilting under cold stress. We also verify that expression of this gene is suppressed by a structural variation in the promoter region.

Conclusions

Based on the high-quality haplotype-resolved genome and multi-omics analysis of upland switchgrass, we characterize candidate genes responsible for cold tolerance. This study advances our understanding of plant cold tolerance, which provides crop breeding for improved cold tolerance.

Background

Switchgrass (Panicum virgatum L.) is a perennial C4 grass utilized as both a forage crop and a dedicated feedstock for bioenergy production [1, 2]. It comprises two distinct ecotypes, lowland and upland, displaying substantial variations in morphology and environmental adaptability [3, 4]. The lowland ecotype typically thrives in warm, moist environments, featuring greater plant height and broader leaves. In contrast, the upland ecotype predominantly inhabits cold, arid areas and is able to overwinter in colder temperate zones [5]. The upland ecotype likely contains gene resources conferring cold tolerance that differ from those in the lowland ecotype.

Due to the frequent occurrence of extreme weather events caused by global climate change, stable crop production faces significant challenges. Cold stress is one of the most threatening abiotic stresses in the growth and development of plants, impacting the geographical distribution of plants and even leading to plant mortality, thereby causing a decrease in crop yield [6]. Additionally, planting switchgrass on marginal lands is an effective way to increase its cultivation area, but these lands often face various abiotic stresses, especially the threat of low temperature. Upland switchgrass represents an ideal model for understanding how plants respond to cold stress, as it can successfully overwinter in northern cold regions compared to lowland ecotypes. However, few studies have explored the molecular mechanisms underlying the regulation of cold stress responses in the upland ecotype relative to the lowland ecotype, and these mechanisms remain largely uncharacterized.

For most plants with an open-pollination mechanism, the improvement of offspring traits typically results from increased genetic variation and specific expression of allelic genes at certain loci [7]. The time and space-specific expression of different allelic genes can result in significant differences in gene products and lead to distinct phenotypes [8, 9]. Traditional de novo assembly algorithms for most species represent samples as haploid genomes. For highly heterozygous switchgrass, the previously reported collapsed representation may have overlooked half of the heterozygous variants in the genome [10]. It could have introduced assembly errors in regions of divergence between haplotypes. The construction of a haplotype-resolved genome assembly for switchgrass will provide a complete view of the genome and its complex genetic variations, facilitating a comprehensive understanding of allele-specific expression (ASE) genes.

In this study, we uncovered the cold tolerance mechanism of upland switchgrass by constructing a high quality and haplotype-resolved reference genome of upland switchgrass “Jingji31” along with transcriptomic, population genetic, and functional validation assays. We identified a large number of cold-responsive (COR) genes with opposite expression trends in upland and lowland switchgrass under cold stress, which may contribute to the cold tolerance differences between the two ecotypes. Additionally, ASE genes were widely present in switchgrass, particularly certain COR genes, whose ASE was induced by cold stress. The genome-wide association study (GWAS) and selective sweep analysis identified a large number of candidate genes potentially associated with cold tolerance, among which the overexpression of one candidate gene was found to positively regulate cold tolerance. Our findings not only improve the understanding of cold tolerance in upland switchgrass, which may accelerate genome-assisted breeding of cold tolerance in this important model energy plant, but also hold promise for promoting comparative genomics studies in other crops.

Results

Assembly and annotation of the upland switchgrass genome

The genome size of the switchgrass upland ecotype “Jingji31” (2n = 4x = 36, abbreviated as “JJ31”) was estimated to be ~ 1.19 Gb using k-mer analysis based on 67.8 Gb (57 × coverage) of Illumina short-read data (Fig. 1a, Additional file 2: Table S1-2). In addition, 53.2 Gb (44.7 × coverage) of PacBio high-fidelity long read (HiFi) sequences and 145.2 Gb (122 × coverage) of Illumina-sequenced Hi-C data were generated (Additional file 2: Table S1). Due to the high heterozygosity (1.55%), Hifiasm was used for haplotype-resolved de novo assembly using phased assembly graphs [11]. Two phased haplotypes, “JJ31-A” and “JJ31-B,” were anchored to pseudo-chromosomes using Hi-C reads. The Hi-C interaction map demonstrated that our chromosome-level anchoring was of high quality and reliability (Fig. 1b). Furthermore, through co-linearity analysis with the previously published lowland ecotype switchgrass “AP13” genome, all pseudo-chromosomes of the two haplotypes were successfully assigned to different subgenomes, bearing the same chromosome IDs “K” and “N” [10] (Fig. 1c, Additional file 1: Fig. S1). Ultimately, the genome sizes of “JJ31-A” and “JJ31-B” were determined to be 1.14 Gb and 1.11 Gb, respectively, with 98.47% (“JJ31-A”) and 99.02% (“JJ31-B”) of sequences anchored across 18 chromosomes (Fig. 1d, Table 1, Additional file 2: Table S3-4). Their respective Contig N50 values were 4.9 times and 4.7 times higher than that of the “AP13” genome (5.5 Mb) [10] (Table 1).

Fig. 1

High-quality haplotype-resolved genome assembly of upland switchgrass JJ31. a Flowering morphology of the upland ecotype JJ31. b Whole genome Hi-C heat map for “JJ31-A” (left) and “JJ31-B” (right). c The chromosome collinearity between the genomes of JJ31 and Alamo. Numbers represent chromosome identifiers. d Genome features of the JJ31 genome. Track “a”: chromosome length; track “b”: gene density; track “c”: transposable element (TE) density; track “d”: GC content; track “e–g”: gene expression levels in roots, stems, and leaves; track “h”: collinearity between chromosomes of “JJ31-A” and “JJ31-B”

Table 1 Summary of assembly and annotation of two haplotype genomes in upland switchgrass

We then employed various strategies to assess the quality of the haplotype-resolved genomes. By realigning paired-end reads to the two haploid genomes, we observed alignment rates of 98.07 and 97.93%, respectively (Additional file 2: Table S3). Furthermore, the embryophyta Benchmarking Universal Single-Copy Orthologs (BUSCO) analysis indicated completeness rates of 98.4 and 98.1% for the two haplotypes (Additional file 2: Table S3). Using Merqury to calculate quality values (QV), “JJ31-A” and “JJ31-B” achieved values of 45.16 and 50.27, respectively, exceeding the Vertebrate Genomes Project standard of QV40 [12] (Table 1). The long terminal repeat (LTR) assembly index (LAI) for both phased haplotype genomes approached 20, nearly meeting the golden standard [13] (Additional file 2: Table S3). These results affirm the accuracy, completeness, and contiguity of our two haploid genome assemblies.

Both haplotype-resolved genomes were annotated with a comprehensive strategy that combined homolog prediction, de novo prediction, and other evidence-driven predictions. In the two haplotypes, 79,672 and 79,416 protein-coding genes were predicted, with 98.9% supported by known gene function databases (Table 1 and Additional file 2: Table S3). The gene models of the two haploid genomes had an average coding sequence length of ~ 1 kb and an average of four exons per gene (Additional file 2: Table S3). We also identified 0.62 and 0.59 Gb repeat sequences, accounting for 54.19 and 53.48% of the two haplotypes, respectively, of which 42.09 and 41.51% were LTRs (Additional file 2: Table S3). Additionally, we identified 2245 and 2206 miRNAs, 1264 and 1291 tRNAs, 9171 and 5221 rRNAs, and 1190 and 1154 snRNAs in the two haplotype genomes, respectively (Additional file 2: Table S3). Considering the overall superior quality of the “JJ31-B” haplotype, it was selected for subsequent analysis unless otherwise stated.

Enhanced cold tolerance and subgenome dominance in upland switchgrass indicated by comparative genomics analysis

To understand the evolutionary relationship between the two ecotypes of switchgrass, we performed a comparative genomic analysis that included several closely related species. The phylogenetic tree showed that the K and N subgenomes of switchgrass diverged approximately 6.6 million years ago (Mya), while the divergence between switchgrass and P. hallii occurred around 8.8 Mya, consistent with previous studies [10] (Fig. 2a). Notably, the K subgenomes of the two ecotypes diverged at 2.3 Mya, and the N subgenomes at 2.6 Mya (Fig. 2a), suggesting that ecotype divergence occurred during this period. We further determined the divergence time between the two ecotypes to be ~ 2.2 Mya (Ks peak at 0.03) by calculating the synonymous substitution rate (Ks) of orthologous gene sets between the different subgenomes of the two ecotypes (Fig. 2b, Additional file 2: Table S5). Combining our findings with the previous report on the tetraploidization time of switchgrass (< 4.6 Mya) [10], we propose an evolutionary scenario in which the N and K subgenomes diverged first, followed by tetraploidization and later ecotype differentiation.

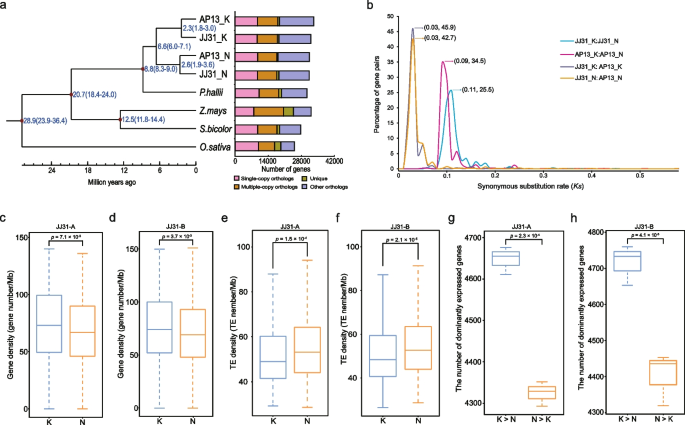

Fig. 2

Comparative genomics and subgenome dominance analysis. a Phylogenetic tree and divergence time estimates of “JJ31” and five closely related species. The right panel shows the distribution of single-copy, multi-copy, unique, and other gene orthologs. b Evolutionary analysis of the “JJ31” and “AP13.” The Ks distribution is shown for orthologs in the switchgrass genomes. K and N represent two subgenomes, respectively. The parentheses contain the X-axis and Y-axis values corresponding to the peaks. c–h Assessment of subgenomic dominance in two haplotype genomes. Gene density of the two subgenomes in the “JJ31-A” (c) and “JJ31-B” (d). TE density of the two subgenomes in the “JJ31-A” (e) and “JJ31-B” (f). Number of dominantly expressed genes in the two subgenomes of the “JJ31-A” (g) and “JJ31-B” (h). The statistical window size is 1 Mb

It was reported that upland switchgrass exhibits greater cold tolerance than the lowland ecotype [14,15,16]. Compared to the “AP13,” a total of 4147 expanded, 5030 positively selected, and 4873 specific genes were identified in “JJ31” (likelihood ratio test, P < 0.05). These genes were enriched in several stress-responsive pathways and biological processes (Additional file 1: Fig. S2). The expanded and specific genes in “JJ31” were primarily enriched in calcium channel activity, calcium ion transmembrane transporter activity, melatonin receptor activity, and sphingolipid metabolic pathways, which are believed to play crucial roles in protecting plants from cold stress [17,18,19,20,21]. These positively selected specific genes were associated with G-protein coupled receptor activity, which is involved in signal transduction of plant stress responses [22]. The above results may help explain the enhanced cold tolerance of upland switchgrass compared to the lowland ecotype.

Subgenome dominance is a common phenomenon in polyploid plants, prompting our investigation into the subgenome characteristics within the two haplotypes of upland switchgrass. We applied a sliding window approach (window size 1 Mb) to evaluate gene and transposable element (TE) densities across the two subgenomes. Compared to the N subgenomes in “JJ31-A” and “JJ31-B,” the K subgenomes exhibited higher gene density (71.2 versus 66.2 genes per Mb and 73 versus 67.6 genes per Mb, P < 0.01), more genes with dominant expression (4662 versus 4305 and 4715 versus 4403, P < 0.01), and less TE density (53.5 versus 56.4 TEs per Mb and 52.5 versus 55.7 TEs per Mb, P < 0.01) (Fig. 2c–h, Additional file 2: Table S6-9). Additionally, the cold stress transcriptome data from both ecotypes revealed slightly more DEGs on the K subgenome (Additional file 2: Table S10). In summary, all metrics indicated that the K subgenome is dominant in both haplotypes, consistent with observations in the “AP13” genome [10].

Contribution of specific differential expression of COR gene families to the cold tolerance differences between the two ecotypes

The upland ecotype “JJ31” exhibited greater cold tolerance than the lowland ecotype “Alamo” (noting that “AP13” was a line/clone selected from “Alamo”) [14] based on the phenotypic and physiological indicators under cold stress (Fig. 3a–c). Leaves of both ecotypes showed significant wilting after 56 days of cold treatment, but only “JJ31” regrew new leaves after returning to room temperature (Fig. 3a). In addition, relative water content (RWC), relative electrical conductivity (REC), and malondialdehyde (MDA) showed significant changes (P < 0.05) in “JJ31” after 21 days of cold stress compared to the control, while in “Alamo,” RWC significantly decreased and REC and MDA significantly increased after 14 days of cold stress compared to the control (P < 0.05) (Fig. 3b,c). The slower physiological changes under cold stress might indicate better cold tolerance in “JJ31” than in “Alamo.”

Fig. 3

Transcriptional landscape differences between the two ecotypes under cold stress. a Phenotypic changes of JJ31 and Alamo on days 0, 28, and 56 under cold stress at 4 °C and recover at room temperature for 28 days. Scale bar indicates 7 cm. b Changes in physiological indicators of JJ31 under control (room temperature) and cold stress (4 °C). From left to right: RWC, REC, and MDA. ** indicates P < 0.005. c Changes in physiological indicators of Alamo under control (room temperature) and cold stress (4 °C). From left to right: RWC, REC, and MDA. ** indicates P < 0.005. d KEGG enrichment of all compared DEGs identified in leaves and roots of JJ31 and Alamo under cold stress. e Expression changes of cold-tolerance-related genes in the circadian rhythm, MAPK signaling pathway, and plant hormone signaling transduction pathways in two ecotypes. f Expression changes of key genes in the CBF-dependent cold response pathway in the two ecotypes

To understand the molecular response mechanisms underlying the greater cold tolerance of upland switchgrass, we conducted transcriptome sequencing on the leaves and roots of “JJ31” and “Alamo” at three time points under cold stress (Additional file 2: Table S1). Based on KEGG enrichment analysis, the DEGs identified from each comparison group were mainly enriched in circadian rhythm, MAPK signaling pathway, and plant hormone signal transduction pathway (Fig. 3d, Additional file 1: Fig. S3). Although both ecotypes relied on similar pathways to respond to cold stress, we found that genes related to cold tolerance within these pathways exhibited ecotype-specific expression (Fig. 3e). During the initial exposure of plants to cold stress, Ca²⁺ influx induces the activity of calmodulin (CaM), which activates downstream MEKK1 to positively regulate plant cold tolerance [23, 24]. Our study found that three members of the CaM family and one member of the MEKK1 family were specifically upregulated in “JJ31,” while two and one members of the respective families were specifically downregulated in “Alamo” (Fig. 3e). Two transcription factors, PIF3 and PIF4, are known as negative regulators in plant cold tolerance by inhibiting the expression of CBF, while the EIN3-BINDING F-BOX 1/2 (EBF1/2) proteins enhance cold tolerance by degrading PIF3 [25, 26]. We found that nine PIF3 genes were specifically downregulated in “JJ31,” while nine PIF3 and two PIF4 genes were specifically upregulated in “Alamo” (Fig. 3e). The two EBF1/2 genes also exhibited opposite expression changes between the two ecotypes (Fig. 3e). Additionally, one LHY, one HY5, and two SNRK2 genes were specifically upregulated in “JJ31,” while one SNRK2 and one PYL were specifically downregulated in “Alamo” (Fig. 3e). These genes have been reported to positively regulate plant cold tolerance [27,28,29,30]. These results suggest that the ecotype-specific expression of these cold stress regulatory genes might explain differences in cold tolerance between the two ecotypes.

The above results imply that there may be more cold-response (COR) genes with ecotype-specific expression. We identified 795 COR genes in switchgrass based on the 109 COR gene families reported in Arabidopsis [31] (Additional file 2: Table S11). We identified 182 and 251 specific DEGs significantly enriched in COR genes in “JJ31” and “Alamo,” respectively (P = 0.035 and P = 1.0745e − 5, Additional file 1: Fig. S4, Additional file 2: Table S12-13 and Additional file 3: Note S1). These COR genes belonged to 58 and 55 families, respectively, among which members of 25 families showed specifically differential expression in the leaves or roots of only one ecotype (Additional file 1: Fig. S5a). The members of 44 COR gene families exhibited differential expression in both ecotypes, where some of these genes showed opposite expression changes between the two ecotypes (Additional file 1: Fig. S5b).

The auxin signaling F-box protein 1 (AFB1)-mediated auxin signaling pathway is involved in plant tolerance to abiotic stress, and its overexpression can enhance plant tolerance to salt and cold stresses [32]. Three AFB1 genes were upregulated in “JJ31,” while four AFB1 genes were downregulated in “Alamo” (Additional file 1: Fig. S5b). ATL80, an E3 ubiquitin ligase and negative regulator in plant cold tolerance [33], had three genes downregulated in “JJ31” and one gene upregulated in “Alamo” (Additional file 1: Fig. S5b). The Arabidopsis mutant hos10-1 completely lost the cold acclimatization response [34]. We found 15 HOS10 genes upregulated in “JJ31,” while 11 were downregulated in “Alamo” (Additional file 1: Fig. S5b). Interestingly, although STRESS RESPONSE SUPPRESSOR2 (STRS2) was reported to negatively regulate Arabidopsis tolerance to salt, osmotic, and heat stress, and not cold stress [35], our study revealed that three STRS2 genes were downregulated in “JJ31” and two were upregulated in “Alamo” (Additional file 1: Fig. S5b), which may highlight the role of STRS2 in response to cold stress in switchgrass. In summary, the ecotype-specific expression of the above COR genes, as well as their opposite expression changes between the two ecotypes, may contribute to the observed differences in cold tolerance.

The transcriptional regulatory pathway dependent on CBF is crucial for the plant response to cold stress [36,37,38]. Similarly, we found that cold response genes in the CBF-dependent pathway were activated to varying degrees in both “JJ31” and “Alamo,” with slight differences between leaves and roots (Fig. 3f). We observed that the specific differential expression of MEKK1 and SIZ1 genes occurred only in the leaves. In contrast, the specific differential expression of CRLKs and ICE1 genes occurred only in the roots (Fig. 3f). Additionally, members of the CaM, MPK3/6, and CIPKs families tended to exhibit opposite expression trends between the two ecotypes (Fig. 3f). In conclusion, through the identification of COR gene families and comparative transcriptome analysis, we comprehensively revealed the landscape of differential expression of COR genes between the two ecotypes, which may contribute to the superior cold tolerance of the upland compared to the lowland ecotype.

The involvement of ASE in response to cold stress revealed by haplotype-resolved genome

The phenomenon of allele-specific expression has been found to be widespread in plants as more genomes are elevated to the level of haplotype resolution, and alleles exhibiting this characteristic are referred to as ASE genes [39]. The haplotype-resolved genome of upland switchgrass enabled us to use RNA-seq data to identify ASE genes, which profoundly impact plant growth and development [40]. According to the correlation between the number of ASE genes and the number of transcriptome samples used in the analysis, we aimed to obtain a complete ASE gene collection in switchgrass by using sufficient data. We found that the number of ASE genes stabilized when the number of transcriptome samples reached 15 by utilizing transcriptome data reported by Zuo et al. (with at least two replicates, Fig. 4a) [41]. A total of 16,801 ASE genes were identified in switchgrass, with the number of alleles biased toward the expression of “JJ31-A” significantly exceeding those biased toward the expression of “JJ31-B” (Fig. 4b, Additional file 2: Table S14). To understand the impact of natural selection on ASE genes and non-ASE genes, we calculated the Ka/Ks ratio between allele pairs. Although most allele pairs exhibited low Ka and Ks values, ASE genes experienced significantly stronger purifying selection pressure compared to non-ASE genes (Fig. 4c, Additional file 2: Table S15). To further investigate potential causes of ASE, we examined the distribution patterns of SNPs surrounding ASE genes and equivalently expressed alleles (EEAs). Compared to EEAs, ASE genes exhibited significantly higher SNP density in the upstream, exonic, intronic, and downstream regions, consistent with previous findings in other plants [42] (Fig. 4d). The SNP density in the upstream region was higher than that in other regions, suggesting that the occurrence of ASE might correlate with the greater variation in the upstream region of the gene.

Fig. 4

Characteristics of ASE genes in switchgrass. a ASE gene numbers increase with the quantity of RNA-seq samples. The specified number sets were selected randomly from 23 ASE gene sets with three replicates. b Dominant expressed alleles in two haplotype genomes. c Ka/Ks of ASE and non-ASE genes. Minima and maxima are present in the lower and upper bounds of the whiskers, respectively, and the width of the violin are densities of the Ka/Ks value. P values were calculated with a two-sided Student’s t test. d SNP density in ASE genes and equivalently expressed alleles (EEAs). The y axis represents SNP numbers every 100 bp. P values were calculated with two-sided Student’s t test. *** indicates P < 0.0005. e Number of ASE genes identified in JJ31 (left) and Alamo (right) under control (room temperature) and cold stress (4 °C). P values were calculated with two-sided Student’s t test. NS indicates not significant. f The expression changes of 67 COR alleles enriched in JJ31-specific ASE genes under control (room temperature) and cold stress (4 °C) conditions. The suffixes “L” and “R” represent leaves and roots, respectively. g The expression levels (TPM) of two alleles of the CBF gene (PVA_6 K02793.1 and PVB_6 K02781.1) across different transcriptome samples in JJ31 and Alamo. ** indicates adjusted P-value < 0.01. h Pattern diagram of PVB_6 K02781.1 advantage expression. Red and blue indicate the allele IDs, corresponding bases, and encoded amino acid types in “JJ31-A” and “JJ31-B,” respectively. “RNA-seq reads” represents the proportion of reads containing different SNP types that map to “JJ31-B.” From left to right, RNA-seq reads aligned to the SNP sites are as follows: 79 reads (C: 92%, G: 8%), 100 reads (G: 45%, C: 55%), and 67 reads each for the third and fourth sites (T: 81%, A: 19%; G: 85%, T: 13%)

Similarly, we utilized the transcriptome data obtained in this study under cold stress to identify ASE genes, aiming to explore whether the response of ASE to cold stress differs between the two ecotypes (Additional file 3: Note S2). Compared to the control group, a significant increase in ASE genes were detected in “JJ31” after experiencing cold stress, whereas no significant change was observed in “Alamo,” indicating that more ASE genes were induced by cold stress in “JJ31” (Fig. 4e, Additional file 2: Table S16-17). In total, we identified 10,775 and 8430 cold-induced ASE genes in the two tissues of “JJ31” and “Alamo,” respectively (Additional file 1: Figs. S6 and S7, Additional file 2: Table S18). Among these ASE genes, 5680 were specific to JJ31, 3,335 were specific to Alamo, and 5095 were shared between the two ecotypes (Additional file 1: Fig. S8a). Additionally, cold-induced ASE genes specific to “JJ31” were significantly enriched in COR genes (P = 0.02, Fig. 4f and Additional file 1: Fig. S8b), whereas those specific to “Alamo” showed no significant enrichment (P = 0.63, Additional file 1: Fig. S8c), supporting the importance of ASE in responding to cold stress in “JJ31.”

We selected the well-known COR gene, CBF, to validate the accuracy of ASE, as this gene undergoes cold-induced ASE in both “JJ31” and “Alamo.” We observed that the two alleles of the CBF gene, PVA_6 K02793.1 and PVB_6 K02781.1, did not show differential expression in the control groups except for the 12 and 24 h control groups of “Alamo,” but PVB_6 K02781.1 exhibited significantly preferential expression in all cold treatment groups (Fig. 4g). Although the sequence similarity between the two alleles is as high as 98.82%, four SNPs cause changes in three amino acids (Additional file 1: Fig. S9). We aligned the RNA-seq data to the reference genome “JJ31-B” and observed a higher proportion of reads containing SNPs corresponding to the B allele type, supporting the dominant expression of PVB_6 K02781.1 (Fig. 4h). In conclusion, our findings indicate the widespread presence of ASE in switchgrass, with more ASE genes involved in cold stress responses in upland ecotype.

Identification of genes associated with cold tolerance by population genetic analysis

To explore cold tolerance genes in upland switchgrass at the population level, we aligned resequencing data from 340 accessions (242 uplands and 98 lowlands) reported previously to the “JJ31” genome [10] (Additional file 2: Table S19), resulting in 10,654,902 SNPs and 243,831 SVs (Additional file 1: Fig. S10, Additional file 2: Table S20 and Additional file 3: Note S3). A total of 103.7 and 125.9 Mb of genomic sequences covering 5084 and 8428 genes were detected using the sliding window method based on SNPs and SVs, respectively (Additional file 1: Fig. S11). We found that 66 and 111 genes from the two datasets were significantly (P = 0.0196 and P = 0.0018, respectively) annotated as belonging to the COR gene family (Additional file 1: Fig. S11). Among the COR genes identified based on SNPs and SVs, approximately 54.5% (36 out of 66) and 62.2% (69 out of 111), respectively, showed differential expression under cold stress (Additional file 2: Table S21). These results suggest that the differential selection of certain COR genes in the two ecotypes potentially contributes to the differences in cold tolerance.

To identify candidate genes related to cold tolerance in switchgrass, we conducted a GWAS based on both mixed linear model and logistic model approaches, using two variant datasets and previously reported overwintering rates of 340 switchgrass accessions [10] (Additional file 1: Fig. S12-S15, Additional file 2: Table S22-23). An association signal on Chr3 K was simultaneously detected in both SV-GWAS and SNP-GWAS, including an overlapping region with the selective sweep region (Fig. 5a). We examined the expression of 14 genes around the association signal and found that only PVB_3 K03605.1 and PVB_3 K03611.1 were highly expressed under cold stress (Fig. 5b and Additional file 1: Fig. S16). Interestingly, only PVB_3 K03611.1 appeared in the overlapping region, which encodes cinnamate-4-hydroxylase belonging to the CYP450 gene family.

Fig. 5

Selective sweep analysis between the upland and lowland ecotype populations and GWAS analysis of overwintering rate. a Top: Selective sweep detection between two ecotypes on chromosome 3 K using SNPs and SVs (Fst method). The black dashed line indicates the top 5% sweep regions. Middle: GWAS of overwintering rate on chromosome 3 K. The black dashed line shows the significance threshold (− log10(P) > 6.69). Gray bars mark overlapping regions between selective sweeps and GWAS. Bottom: Schematic of PVB_3 K03611.1 and its upstream 61-bp deletion. b The expression levels (TPM) of PVB_3 K03611.1 under control and cold stress. *** indicates adjusted P-value < 0.001. The suffixes “L” and “R” represent leaves and roots, respectively. c Left: Luciferase (LUC) reporter gene expression observed by soaking in substrate solution; Right: Quantitative detection of the firefly luciferase and renilla luciferase in leaves inoculated with different recombinant vectors using a microplate plate-based fluorescence assay. The error bars indicate the mean ± s.d.; n = 3 biological replicates. * indicates P < 0.05 and **** indicates P < 0.0001. d The distribution proportions of three genotypes with a 61-bp deletion across different ecotypes of germplasm. 0/0 means consistent with the reference genome, 0/1 means heterozygous, and 1/1 means homozygous. e Overwintering survival rate of lowland accessions with three genotypes in BRKG (the name of the common garden) area. f Phenotypic changes of rice wild type and overexpression lines on days 0, 3, and 6 under 4 °C cold stress, scale bar represents 7 cm. The number in the suffix represents the overexpression line number. g Physiological parameters of PVB_3 K03611.1 overexpression lines and WT under cold stress. Top left: Relative expression levels of PVB_3 K03611.1 (N.D. indicates not detected). Remaining panels: SOD and POD activities, and MDA content in WT and overexpression lines after 24 h of cold stress at 4 °C. * indicates P < 0.05, ** indicates P < 0.01, and *** indicates P < 0.005

We found a 61-bp deletion located 300 bp upstream of the promoter region of PVB_3 K03611.1 (Fig. 5a). We confirmed that the presence of this deletion in the promoter region inhibits the expression of the reporter gene using a dual-luciferase reporter system in tobacco (Nicotiana tabacum) leaves (Fig. 5c). We further observed this deletion with frequency differences between the two ecotypes, where the 0/1 (heterozygous) and 1/1 (homozygous) genotypes were present in about 40% of the lowland accessions, while the deletion was absent in the upland accessions (Fig. 5d). Analysis of the overwintering survival rate of lowland accessions revealed that 35% and 56% of accessions with 0/0 (same as the reference) and 0/1 genotypes, respectively, could survive the winter, while this proportion decreased to 14% in accessions with the 1/1 genotype (Fig. 5e). These results indicated that the deletion could reduce the expression of the target gene and might be under purifying selection in the upland accessions.

To validate the role of PVB_3 K03611.1 in cold tolerance, we overexpressed it in rice. Compared to the wild type (WT) rice, the transgenic lines exhibited less leaf yellowing and withering under cold stress (Fig. 5f and Additional file 1: Fig. S17a). Additionally, the transgenic lines displayed significantly higher activities of superoxide dismutase (SOD) and peroxidase (POD), as well as significantly lower levels of MDA than those in WT plants when exposed to low temperatures, indicating that overexpression of PVB_3 K03611.1 enhances the cold tolerance of the transgenic lines (Fig. 5g and Additional file 1: Fig. S17b). Collectively, these results support that the deletion in the promoter region may inhibit the expression of PVB_3 K03611.1, leading to a reduction in cold tolerance.

Discussion

The application scope and geographical distribution of switchgrass have gradually expanded since 1992, when it was chosen as a model species for bioenergy feedstock [43]. During the formation of modern tetraploid switchgrass, interspecific hybridization between unknown ancestors, polyploidization, whole-genome duplication and diploidization may have occurred [44]. Although the Phytozome database (https://phytozome-next.jgi.doe.gov/) has released genome data for two upland switchgrass, these data are subject to “restrictions on dataset usage”, particularly for comparative genomic analysis. We conducted a comparative analysis of the genomes of “JJ31” and the previously published “AP13” and revealed that the divergence between the ecotypes is a relatively recent event that occurred after the subgenome differentiation. These results indicated a high degree of homology between the two ecotypes, which might explain why the upland and lowland ecotypes could easily hybridize at the tetraploid level [45]. Subgenome dominance is a widespread phenomenon in allopolyploids and plays a crucial role in plant evolution and adaptation. A study on cotton (Gossypium raimondii) suggested that differences in TE density between subgenomes might be a determining factor of subgenome dominance [46], and our research further supports this perspective. Another study in cotton has shown that, in addition to epigenetic modifications, chromatin dynamics are also important factors influencing subgenome dominance [47]. Whether these factors similarly contribute to subgenome dominance in switchgrass requires further investigation with sufficient data.

The haplotype genomes allowed the identification of ASE genes, addressing the limitations of the previous chimeric assembly genomes. Similar to previous reports [48, 49], we found a positive correlation between the number of ASE genes and the number of transcriptome samples in switchgrass, and these ASE genes were widely present throughout growth and development. ASE genes accounted for 25.88% (16,801 out of 64,928) of all annotated alleles in our study, which is higher than the approximately 7.5% (2676 out of 35,525) identified in the autopolyploid sugarcane (Saccharum spontaneum L.) [50]. We found more ASE genes biased toward “JJ31-A,” indicating that the number of ASE genes biased toward different parents is not balanced, which is consistent with a report in cotton [51]. Additionally, we discovered that there were more cold-induced ASE genes in the upland ecotype compared to the lowland ecotype. These results indicated that the dominant effects of alleles played a crucial role in the growth, development, and defense against abiotic stresses in switchgrass. Further exploration of the mechanisms underlying ASE can enhance the efficiency and accuracy of genome-assisted breeding strategies.

The two ecotypes of switchgrass are ideal models for studying plant cold tolerance mechanisms. Although upland and lowland ecotypes can coexist in transition zones, the southern regions of the USA are dominated by lowland ecotypes, while the northern regions are dominated by upland ecotypes [52]. This distribution pattern results in differences in cold tolerance between the two ecotypes, with upland ecotypes well adapted to USDA Hardiness Zones 3 to 7, and lowland ecotypes well adapted to USDA Hardiness Zones 5 to 9 [52]. We identified a large number of genes involved in photomorphogenesis and circadian rhythms (e.g., PIF3, PIF4) that participate in the cold stress response in switchgrass. While their roles in cold tolerance have been demonstrated in Arabidopsis [25, 26], the ecotype-specific expression mechanisms regulating cold tolerance in switchgrass require further investigation. Although transcriptomic analysis under 4 °C treatment has to some extent revealed the potential mechanisms underlying the cold tolerance differences between the two ecotypes in this study, whether lower treatment temperatures, particularly freezing stress (< 0 °C), would produce more informative results remains to be further investigated. Future exploration of potential regulatory mechanisms beyond the COR gene families at the transcriptional level, as well as epigenetic regulation and post-transcriptional regulation, will provide a more comprehensive understanding of the mechanisms underlying cold tolerance differences between the two ecotypes.

Based on a high-quality upland reference genome, we employed stringent filtering criteria to identify SNPs and SVs in the resequencing data from switchgrass populations planted in cold regions. Based on these variations, we identified a large number of signals associated with overwintering survival rate in switchgrass. It should be noted that the lambda value of GWAS using the mixed linear model in this study showed a certain degree of underestimation, which may be caused by the following reasons. Firstly, as a cross-pollinated allotetraploid, the complex genotype and subgenome interaction effects of switchgrass may lead to systematic bias in statistical analysis [53]. Furthermore, the winter survival rate in this study is a complex trait represented by a binary variable, which may further exacerbate the abnormality of the lambda value. Finally, we incorporated the kinship matrix and population structure matrix (Additional file 1: Fig. S18) into the model analysis to mitigate the lambda value abnormality as much as possible. Additionally, we performed GWAS on the dataset using the SwitchgrassGWAS R package based on a logistic model (Additional file 1: Fig. S13 and S15). The results showed that the lambda values for both SNP-GWAS (0.98) and SV-GWAS (0.87) were improved, indicating more effective control of genomic inflation. Importantly, the association signals identified in this study were consistently detected by both models, further supporting the reliability of our conclusions. When interpreting GWAS results, it is crucial to consider the limitations mentioned above. Selecting signals that pass stringent significance thresholds and integrating multi-omics evidence and validation experiments remains an effective strategy for identifying reliable candidate genes. In the genes identified through selective sweep analysis and GWAS, over 25 and 28% (Additional file 1: Fig. S19) respectively showed differential expression in at least one tissue after cold stress, indicating that multi-omics integrated analysis is an effective approach for identifying candidate genes. The CYP450 family has been found to play a crucial role in plant development and stress responses [54, 55]. Some studies have suggested the potential role of certain CYP450 gene family members in cold tolerance in sorghum [56] and perennial ryegrass [57], but their specific functions remain experimentally unverified. We identified a 61-bp deletion that reduces the expression of the downstream gene CYP450 (PVB_3 K03611.1), thereby influencing cold tolerance and providing new evidence for CYP450-mediated cold tolerance in plants. Current breeding strategies for cold tolerance in switchgrass primarily focus on selecting lowland germplasm resources with both cold resistance and high biomass potential [14]. The SV markers developed in this study provide novel molecular tools for cold-tolerant germplasm screening, especially for the rapid identification of cold tolerance at the early seedling stage. Furthermore, the regulatory mechanisms of CYP450 in the cold stress response need to be further elucidated to design cold-tolerant breeding strategies with multi-target synergistic regulation.

Conclusions

In this study, we constructed a high-quality haplotype-resolved genome for the upland switchgrass “JJ31.” Comparative analysis with the lowland genome revealed that the divergence between the two ecotypes occurred after the differentiation of the two subgenomes. Through genome-wide identification of the COR gene family and comparative transcriptome analysis, we found no significant difference in the number of COR gene family members between the two ecotypes. However, a large number of COR genes exhibited opposite expression patterns under cold stress, which may contribute to the differences in cold tolerance between the two ecotypes. Based on the haplotype-resolved genome, we identified a large number of ASE genes in switchgrass, with more cold-induced ASE genes present in the upland ecotype. Compared to the lowland ecotype, cold-induced ASE genes in the upland ecotype were significantly enriched in COR genes, indicating their important contribution to cold tolerance. Additionally, through the analysis of resequencing data from 340 collected switchgrass accessions, we generated a comprehensive map of genetic variation in switchgrass. Selective sweep analysis and GWAS identified numerous candidate genes associated with cold tolerance. A newly identified cold-tolerance candidate gene, CYP450 (PVB_3 K03611.1), improved cold tolerance when heterologously expressed in rice. A deletion in the promoter region of this gene was confirmed to affect the expression of downstream genes, and this deletion, mainly present in lowland germplasms, was negatively correlated with overwinter survival rates. In summary, our research findings provide valuable resources for future genomic studies of switchgrass and other plant species, advancing genome-assisted breeding for cold tolerance in this important bioenergy crop.

Methods

Sample collection and DNA sequencing

The upland switchgrass cultivar “JJ31” (2n = 4x = 46) was derived from the germplasm repository of the Beijing Academy of Agricultural and Forestry Sciences. It is characterized by shorter plant height and earlier flowering time [58]. The plants were propagated asexually, planted in three pots in the greenhouse, and grown at 26/22 °C (day/night) with a photoperiod of 14/10 h of light/dark. The leaves of plants grown at the E3 stage [59] were collected and immediately frozen in liquid nitrogen, followed by DNA extraction using the DNAsecure Plant Kit (TIANGEN). For Illumina short-reads sequencing, ~ 1.5 μg of genomic DNA was extracted to construct a short insert (350 bp) library using a TruSeq Nano DNA HT Sample Preparation Kit. Sequencing was performed using Illumina HiSeq2500 platforms. The raw reads were trimmed using Trimmomatic (v.0.36) [60] with default parameters. For PacBio HiFi sequencing, SMRTbell libraries were constructed using the SMRTbell Express Template Prep Kit 2.0 (PacBio, CA). Two single-molecule real-time (SMRT) cells were run on the PacBio Sequel II platform. The raw data were processed with the SMRT Link (v.9.0) to obtain HiFi reads, using the parameters –min-passes = 3 and –min-rq = 0.99. For Hi-C sequencing, the library construction method was the same as the protocol previously used in our laboratory [61]. The constructed library was sequenced using the Illumina NovaSeq 6000 platform.

Genome size prospection

To estimate the genome size, k-mer analysis (K = 17) was performed on Illumina short reads using Jellyfish (v.2.3.0) [62]. The genome size, heterozygosity, and repeat proportion were estimated by GenomeScope (v.2.0) [63] based on the k-mer frequency distribution. The principle for calculating genome size is based on the formula:$G=\left(N\times\left(L-k+1\right)-B\right){/D}$, where N is the total number of sequence reads, L is the average length of the reads, K is the k-mer length, B is the total number of low-frequency k-mers, D is the estimated total depth based on k-mer distribution, and G is the genome size.

Genome assembly and pseudochromosome construction

HiFi reads were assembled into two haplotype-resolved draft genomes using the Hifiasm software (v.0.15.5) [11]. Initially, an all-vs-all pairwise comparison of HiFi reads was performed for self-correction. After haplotype-aware error correction, the corrected reads were used to construct an assembly graph and generate bubbles within this graph. An initial contig assembly based on the overlap graph was obtained using a modified “best overlap graph” strategy. During the assembly process, optimized parameters suitable for polyploid genomes (–n-hap 4) were added to preserve haplotype information as much as possible. Filtered Hi-C reads were aligned to the initial contig assembly using BWA (v.0.7.8) [64], and the alignment results were used as the input in Juicer (v.1.6) [65]. The 3D-DNA workflow selected only uniquely aligned and valid paired-end reads for further assembly [66]. Finally, the order of scaffolds was manually adjusted using Juicebox (v.2.13.07) [67] to obtain the final chromosome assembly. HiCExplore (v.3.7.2) [68] was used to draw heatmaps of the connections between chromosomes.

Genome assessment

To assess the quality of the genome assembly for accuracy, completeness, and continuity, we used BWA (v.0.7.8) [64] to map high-quality Illumina paired-end reads to the genome, evaluating the alignment rate and coverage. BUSCO (v.4.1.2) [69] and the CEGMA (v.2.5) [70] were used to check the completeness of the genome assembly or annotation. The genome quality was further assessed by calculating the QV values with Merqury (v.1.3) [12] and the LAI with LTR_retriever (v.2.9.8) [13].

Annotation of repetitive sequences

We annotated the repetitive sequences by combining homology-based alignment and de novo prediction. The homology-based alignment method used RepeatMasker (v.4.0.5) [71] and RepeatProteinMask (v.4.0.5) [71] to identify sequences similar to known repetitive sequences based on the RepBase database (http://www.girinst.org/repbase) [72]. The de novo prediction method utilized LTR_FINDER (v.1.0.7) [73], Piler (v.3.3.0) [74], RepeatScout (v.1.0.5) [75], and RepeatModeler (v.1.0.8) [76] to construct a de novo repeat sequence library, followed by the use of RepeatMasker (v.4.0.5) [71] to predict the repetitive sequences in this library.

Prediction of gene structure

The gene structure was annotated by integrating de novo prediction, homology-based prediction, and transcriptome-based prediction. De novo prediction involved using software such as AUGUSTUS (v.3.2.3) [77], GENSCAN (v.1.0) [78], GlimmerHMM (v.3.0.1) [79], geneid (v.1.4) [80], and NAP (v.2013.11.29) [81] to predict coding regions from the genome with repetitive sequences masked. The homology-based prediction method downloaded protein sequence files of Arabidopsis, rice, Panicum miliaceum, Panicum hallii, and the published genome of a switchgrass line “AP13” selected from the lowland ecotype “Alamo” in the National Center for Biotechnology Information (NCBI, https://www.ncbi.nlm.nih.gov/). These protein sequences were aligned to the two haplotype genomes of upland switchgrass using tblastN (v.2.2.26) [82] with an e-value threshold of 1e⁻⁵. The Solar (v.0.9.6) [83] software was used to integrate the BLAST results, and GeneWise (v.2.4.1) [84] was employed to predict the precise gene structures in the corresponding genomic regions. The transcriptome-based prediction method used TopHat (v.2.0.13) [85] and Cufflinks (v.2.1.1) [86] to align transcriptome data to the two haplotype genomes. Trinity (v.2.1.1) [87] was utilized to assemble RNA-seq data to create pseudo-expressed sequence tags (pseudo-ESTs), which were then mapped to the two haplotype genomes. Finally, EVidenceModeler (v.1.1.1) [88] was used to integrate the gene sets obtained from the three methods into a non-redundant, more complete gene set (EVM sets). The Program to Assemble Spliced Alignments (PASA) [89] was used to correct the EVM sets, adding information such as UTRs and alternative splicing, to obtain the final gene set.

Annotation of protein-coding genes and non-coding RNA

Six databases were used for the functional annotation of coding genes, including Swiss-Prot (http://www.uniprot.org/) [90], InterPro (https://www.ebi.ac.uk/interpro/) [91], theNon-Redundant Protein Sequence database (NR, ftp://ftp.ncbi.nih.gov/blast/db/), Pfam (https://pfam-legacy.xfam.org/) [92], KEGG (http://www.genome.jp/kegg/) [93], and the GO database (http://www.geneontology.org/page/go-database) [94].

miRNA, rRNA, and snRNA were predicted in the genome using INFERNAL (v.1.1.5) [95] with the Rfam database (https://rfam.org/) [96]. For tRNA, tRNAscan-SE (v.2.0.12) [97] was used to predict tRNA sequences in the two haplotype genomes based on the structural characteristics of tRNA.

Phylogenetic tree construction and divergence time estimation

BLASTP (v.2.7.1) was used to search against the protein sequences of P. hallii, Z. mays, S. bicolor, and O. sativa, as well as the two subgenomes of “JJ31-B” and “AP13,” using a default E-value cutoff of 1e⁻⁵. Orthofinder (v.2.3.1) [98] with default parameters was then used to cluster the filtered BLAST results into paralogous and orthologous groups. The sequences of single-copy gene families were aligned using MUSCLE (v.3.8.31) [99], and the alignment results were concatenated to form a super alignment matrix. RAxML (v.8.0.19; http://sco.h-its.org/exelixis/web/software/raxml/index.html) [100] was used to construct the phylogenetic tree using the maximum likelihood method, with bootstrap values set to 100. The divergence time of each node on the phylogenetic tree was estimated using the MCMCTree program (v.4.5; http://abacus.gene.ucl.ac.uk/software/paml.html) [100] with phylogenetic analysis by maximum likelihood (PAML) with the parameter settings “burn-in = 10,000, sample-number = 100,000, sample-frequency = 2.” The TimeTree database (http://www.timetree.org/) [101] provided species divergence times. On the basis of the orthologous genes for the two subgenomes each of “JJ31-B” and “AP13,” the synonymous substitution (Ks) was calculated. The formula t = Ks/2r was used to estimate the divergence time between species, where r is the neutral substitution rate (r = 6.96 × 10⁻⁹) [30, 102, 103].

Identification of the COR gene families

The protein sequences of Arabidopsis and rice were downloaded from the TAIR (https://www.arabidopsis.org) and RGAP (http://rice.plantbiology.msu.edu) databases, respectively. Based on the 115 COR genes reported in Arabidopsis, we used BLASTP (v.2.7.1) to identify the COR protein sequences in rice, with an e-value set to 1e − 10 [31]. The top-ranked protein sequences were combined with the Arabidopsis protein sequences to create a merged library. Subsequently, we identified the COR protein sequences in “JJ31-B” using an e-value of 1e − 10 and identity > 60% [31].

Transcriptomic analyses of switchgrass under low temperature

Seeds of “JJ31” and “Alamo” were sown in plastic pots (10 × 15 × 6 cm) filled with quartz sand and cultivated in a growth chamber (26 °C with 14 h of light, 22 °C with 10 h of darkness). According to a previous study, the 4 °C treatment induces significant physiological changes and the expression of cold tolerance genes in switchgrass, and was therefore selected as the cold stress temperature in this study [104]. Cold stress treatment was then applied to E3 stage [59] seedlings of both ecotypes, with conditions set to 4 °C with 14 h of light and 4 °C with 10 h of darkness, while the control group was maintained under normal conditions. After 12, 24, and 48 h of cold stress treatment, the leaves and roots of JJ31 and Alamo were collected and stored at − 80 °C. Three biological replicates were set for each treatment and control, with each replicate consisting of a mixture of three seedlings. RNA was extracted from the mixed samples using the RNeasy Plant Mini Kit (QIAGEN), and the quality of RNA was assessed by RNA gel electrophoresis. High-quality RNA was used to construct cDNA libraries with the NEBNext Ultra Directional RNA Library Prep Kit. Transcriptome sequencing was performed on the Illumina HiSeq X platform. The raw data were processed to remove adapters and low-quality nucleotide sequences using Trimmomatic (v.0.36) [60]. The quality of the filtered data was assessed using FastQC (v.0.11.9, https://www.bioinformatics.babraham.ac.uk/projects/fastqc/). A genome index file was built with Kallisto (v.0.46.0) [105] using “JJ31-B” as the reference genome. Subsequently, the filtered transcriptome clean reads were aligned to the index file to obtain gene count values and transcripts per million (TPM). DESeq2 (v.1.24.0) [106] was employed for identifying DEGs (|log₂ (fold change)|≥ 0.8 and adjusted P-value < 0.05) based on gene count values. GO and KEGG enrichment analyses were performed using the OmicShare tools (http://omicshare.com/tools).

Physiological index measurement

Leaves of E3 stage [59] seedlings of “JJ31” and “Alamo” were used for physiological measurements, with the cultivation methods and conditions being the same as those used for the seedlings prepared for transcriptome sequencing. The RWC, REC, and MDA content of the leaves were measured on seedlings after 1, 7, 14, 21, 28, and 35 days under both cold treatment and normal conditions. Transgenic rice and WT rice were cultivated for 45 days under 26 °C with 14 h of light and 22 °C with 10 h of darkness, followed by cold stress treatment at 4 °C. After 24 h of cold stress, the MDA content and the activities of POD and SOD enzymes were quantified using rice leaves. The RWC of the leaves was determined using the saturated weighing method [107] based on the formula RWC = (FW-DW)/(TW-DW), where FW refers to the fresh weight of leaves taken from the same part of seedlings, TW is the saturated fresh weight of these leaves after absorbing water, DW refers to the dry weight of leaves after soaking, blanching at 105 ℃ for 30 min, and then drying at 65 ℃ until a constant weight is reached. The measurements of REC, MDA, POD, and SOD were based on the methods previously described by our laboratory [61].

Differential expression analysis of allelic genes

Protein sequences from the two haplotype genomes were retrieved using TBtools (v.2.069) [108]. The proteins in “JJ31-A” were compared with those in “JJ31-B” using BLASTP (v.2.7.1), and syntenic blocks within the genomes were identified using MCScanX [109] with default parameters. Gene pairs with unique alignment relationships between the “JJ31-A” and “JJ31-B” genomes were then identified, with alleles required to originate from the same pair of homologous chromosomes. The sequences of “JJ31-A” and “JJ31-B” were combined into a single file [42]. An index file for the combined sequences was created using Kallisto (v.0.46.0) [105, 110], and the clean RNA-seq data were aligned to the index file to obtain gene count values. Pairwise comparisons of allelic genes (JJ31-A/JJ31-B) were performed using DESeq2 (v.1.24.0) [106] based on the gene count values to identify differentially expressed genes, with criteria set at |log₂(fold change)|≥ 1 and adjusted P-value < 0.05. Genes meeting the following three conditions were identified as ASE genes: (1) the fold change of one allele compared to the other was > 2 or < 0.5; (2) TPM values > 1 in all transcriptome samples; (3) differential expression of alleles in at least one transcriptome sample. All transcriptome samples involved in ASE gene identification had at least two replicates.

SNP calling

SNP calling was performed using GATK (v.4.3.0.0) [111], with detection by HaplotypeCaller and genotyping via GenotypeGVCFs. The SelectVariants tool was used to obtain a collection of SNPs based on the “–select-type-to-include SNP” parameter. This collection was then filtered using the parameters “QD < 2.0 || FS > 60.0 || SOR > 3.0 || MQ < 40.0 || MQRankSum < −12.5.” Finally, VCFtools (v.0.1.16) [112] was employed to further filter the data using parameters with “–max-missing 0.9, –maf 0.05, –minDP 10.”

SV detection

To improve the accuracy of SV identification, we employed three tools: Manta (v.1.6.0) [113], Delly (v.1.1.6) [114], and LUMPY (v.0.3.1) [115]. First, we used LUMPY with the parameters -P -B -S -D to detect SVs, excluding insertions. We filtered results lacking split read support and conducted genotyping with SVTyper (v.0.7.1) [116]. The other two tools were used with their default settings for both SV detection and genotyping. Finally, we merged and filtered the results from these three tools using SURVIVOR (v.1.0.7) [117], with the parameters set to “SURVIVOR merge 1000 3 1 1 0 50.” Only SVs identified by all three tools were retained.

Selective sweep analysis

To identify genomic regions under selection in upland relative to lowland ecotypes, we used VCFtools (v.0.1.16) [112] to perform Fst analysis based on a sliding window of 100 kb with a step size of 10 kb [118]. The top 5% windows were identified as selective sweeps [119].

Genome-wide association study

To improve the accuracy of GWAS results, we filtered the SNP and SV variant datasets, removing data with a minor allele frequency (MAF) < 0.05 or missing rate > 0.2. Association analysis was performed using GEMMA (v.0.94.1) [120] based on a mixed linear model. The model was defined as y = Xα + Sβ + Kμ + e, where y represents the phenotype, X represents the genotype, S is the population structure matrix, and K is the kinship matrix. Xα and Sβ represent fixed effects, while Kμ and e represent random effects. To better control for genomic inflation, we also performed GWAS using a logistic model implemented in the SwitchgrassGWAS R package [10]. The significance cutoff was defined as the Bonferroni test threshold, which was set as 0.05/(total number of SNPs) and 0.05/(total number of SVs)[118], which corresponded to − log10(P) = 8.33 for SNPs and 6.69 for SVs.

Dual-luciferase assays to assess impact of SV on gene expression

To study the impact of SV on gene expression, the activity of dual luciferase was detected by the instantaneous expression of tobacco. Dual-luciferase assays were performed as described in a previous study [61]. The promoter fragment was recombined into the vector pGreenII 0800-LUC to form a reporter vector (Empty-LUC, promoter (-SV)-LUC, and promoter (+ SV) -LUC), and the recombinant plasmid was transformed into Agrobacterium tumefaciens GV3101 (psoup-p19) by freeze–thaw method. The bacterial solution was cultured to an OD600 of 0.6 and then injected into the abaxial side of tobacco leaves. Finally, fluorescence in tobacco leaves was observed using a live imaging system (FUION-FX7. EDGE), and the injection areas were collected and fluorescence activity was measured using a luciferase assay kit (Vazyme Biotech Co., Ltd, DL101).

Transgenic rice validation

The CDS sequence of PVB_3 K03611.1 was synthesized using gene synthesis methods and inserted into the pCAMBIA3300-35S-EGFP vector under the control of the 35S promoter. The wild rice variety used for transgenic verification experiments in this study was Nipponbare (O. sativa L. spp. japonica). The transformation was performed using the Agrobacterium-mediated method as described by Hiei et al. [121]. First, Agrobacterium was added to the infection solution to prepare a resuspension with OD₆₀₀ of 0.2. The rice callus was immersed in the Agrobacterium resuspension for 10–15 min, and then co-cultivated on medium at 20 °C for 48–72 h. The callus was then transferred to the selection medium and cultured in the dark at 26 °C for 20–30 days. The positive callus tissues screened were inoculated into the secondary screening medium and cultured at 26 ℃ in the dark for 7–10 days. The positive callus tissues that passed the secondary screening were inoculated into the differentiation medium and cultured at 25–27℃ in the light for 15–20 days. After the 2–5-cm buds appeared, they were inoculated into the rooting medium and cultured at 30 ℃ in the light for 7–10 days. PCR-positive seedlings were transplanted into soil and grown under conditions of 26 °C with 14 h of light and 22 °C with 10 h of darkness. When the plants reached the four-leaf stage, real-time quantitative PCR was performed, with each sample tested in three technical replicates. Primer information is provided in Additional file 2: Table S24.
